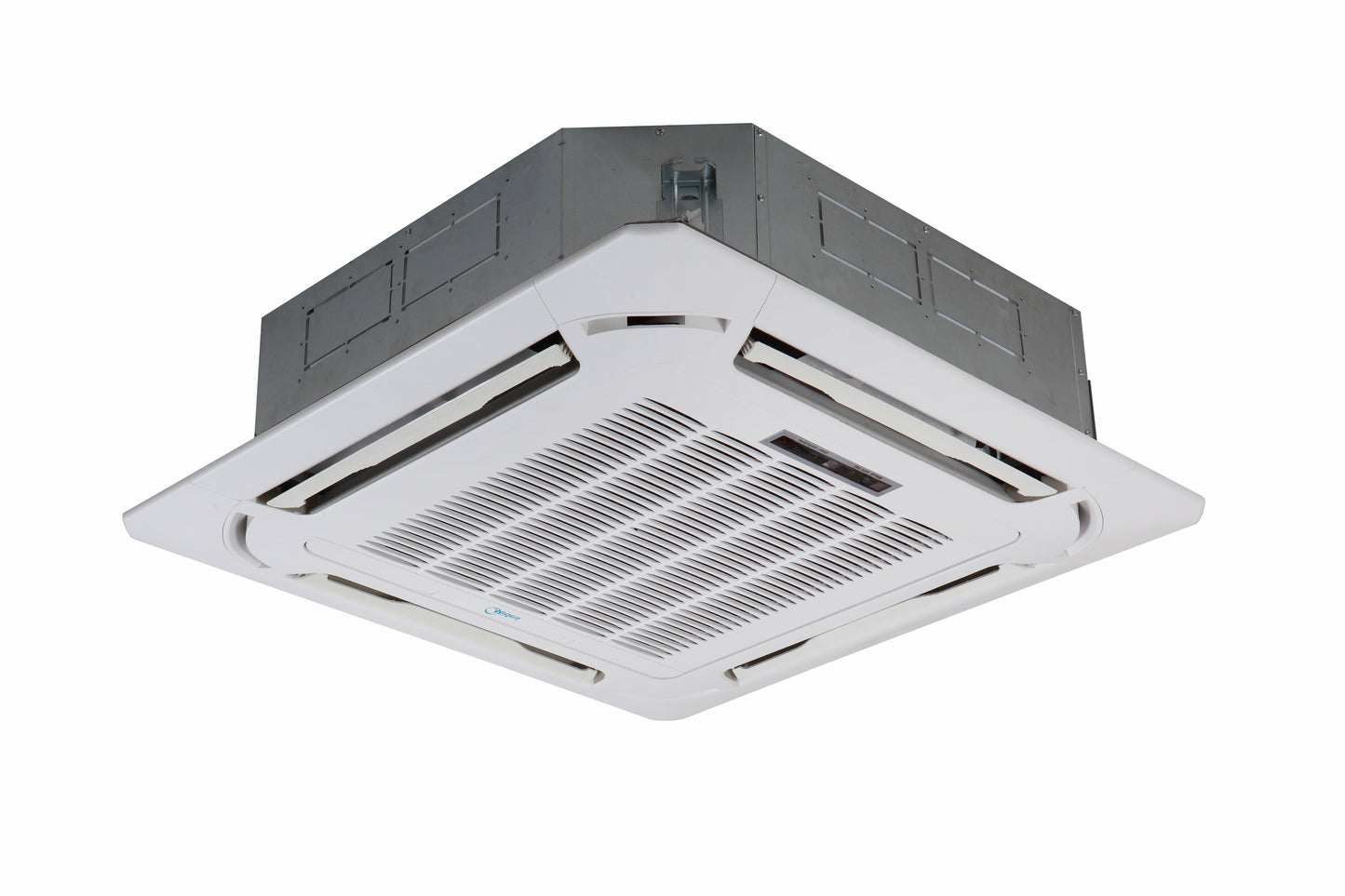

Premier Hyper 9K Cassette

Maximum Flexibility for Optimal Comfort Control

Sizes: 09/12/18/24

Select sizes are ENERGY STAR® certified based on outdoor unit pairing

KEY FEATURES

• Built-In Condensate Lift Pump
• The Cassette is supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.
• Easy maintenance with the circuit box inside the unit, provides a more compact size for easier installation.

CONTROLS

• Wireless Remote Controller included with indoor unit
• Optional Wired Remote Controller KSACN0101AAA (Timer Function)
• Wired Remote Controller KSACN0501AAA (7-Day Programmable)

INDOOR FEATURES

• Available in 208/230V
• Up to 22.5 SEER and 12.0 HSPF when paired with DLCSRA outdoor unit
• Modes: Cool, Heat, Dry, Fan, Auto
• Auto-restart function
• Louver control (fixed or swing)
• Three fan speeds
• Outside air intake
• Built-in condensate lift pump
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Quiet indoor operation, as low as 27 dB(A)
• Aluminum Golden Hydrophilic pre-coated fins
• Grille/ceiling panel 2’ x 2’ sizes 09 to 18 KSALG0101AAA
• Grille/ceiling panel 3’ x 3’ size 24 P/N KSALG0201AAA

COMPATIBLE WITH:

• DLCSRA Outdoor Unit - Single Zone
• DLCMRA Outdoor Unit - Multi-Zone
• Wireless Wired Controller Remote Controller (Timer Function) KSACN0101AAA

ACCESSORIES

• Wi-Fi® Kit KSAIF0401AAA
• Wired Controller (7-Day Programmable) KSACN0501AAA
• 24V Interface for third-party
  thermostat compatibility KSAIC0401230

Grille is required; sold separately.

Discontinued. No returns.
