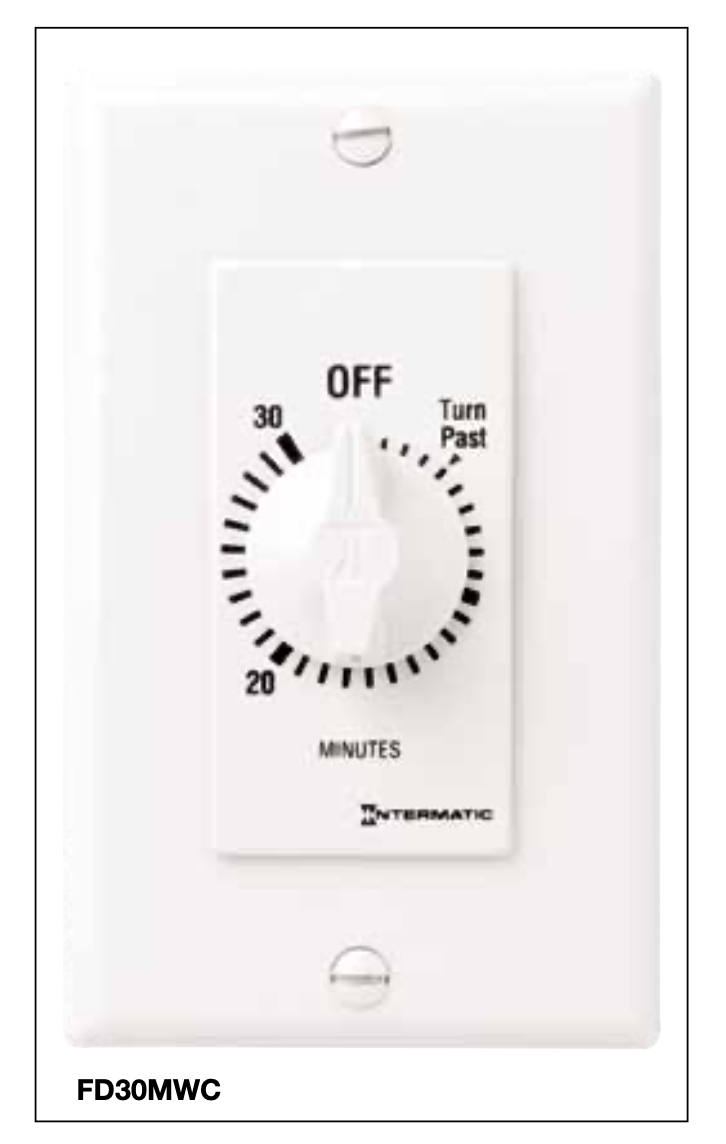

FD Series

Decorator Series

The FD Series Decorator Auto-Off Timers are designed to replace any standard wall switch - single or multi-gang. This series of energy-efficient mechanical timers do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Features

• Hold feature enables user to override the automatic shut-off function

• Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates

• Single or multi-gang with no field modifications required

• Time saving up front terminal connection with teeter-type terminals

• Press-on knob design ensures quick and easy installation

• CFL Compatible

  Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

• 20 Amp, 125 VAC, 50/60 Hz 10 Amp, 250 VAC, 50/60 Hz 10 Amp, 277 VAC, 50/60 Hz
• 7 Amp, 125 VAC
• 1 HP, 120 VAC, 50/60 Hz 2 HP, 240 VAC, 50/60 Hz
• -40 ̊F to 104 ̊F (-40 ̊C to 40 ̊C)
• Can be used with decorator and toggle type switch plates
• 2.79" H x 1.6" W x 1.19" D
