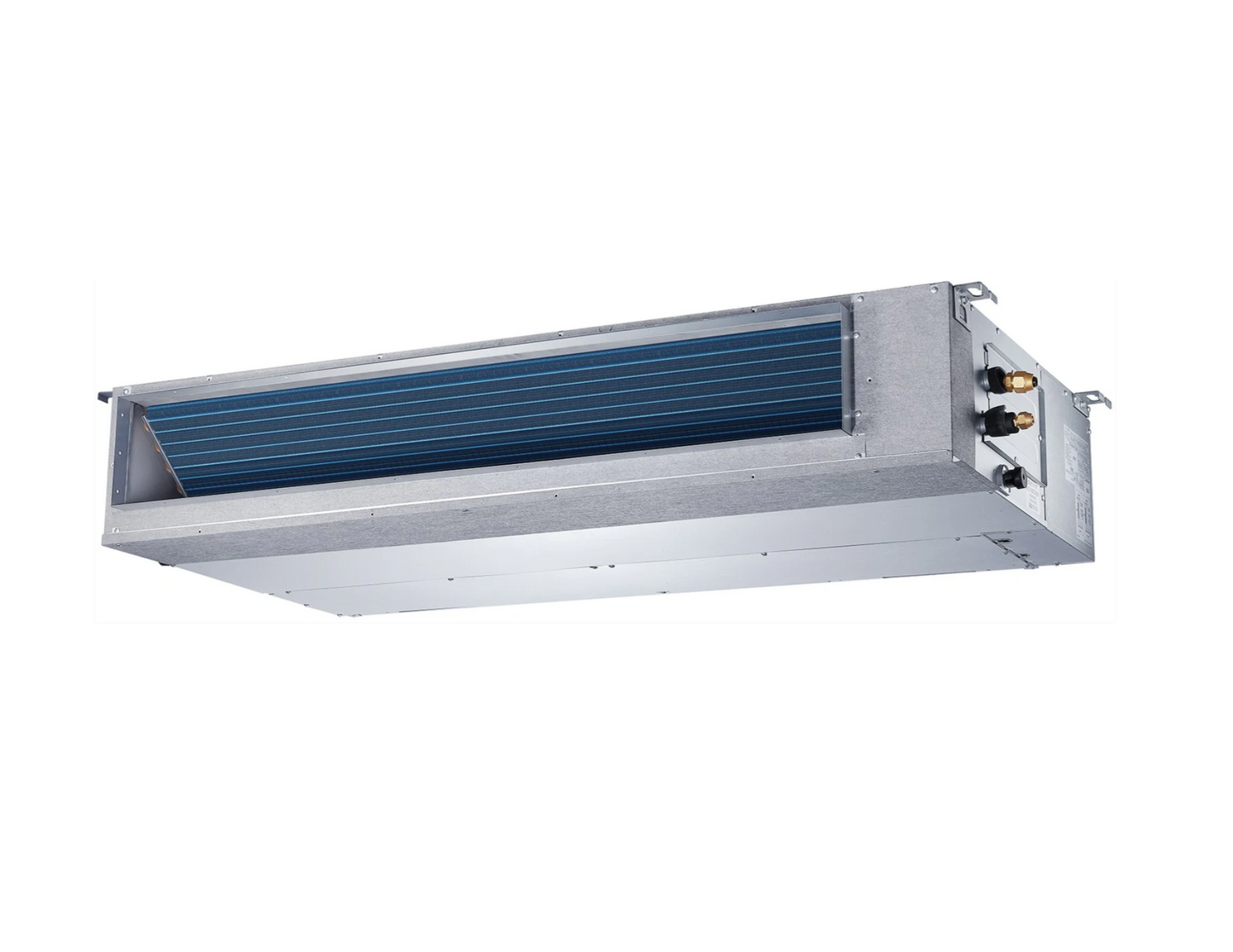

Premier Hyper 18K Ducted

Flexible Installation;Increased Air Circulation

Sizes: 09 / 12 / 18 / 24

Select sizes are ENERGY STAR® certified based on outdoor unit pairing

KEY FEATURES

Vertical or Horizontal Installation

Designed for maximum installation flexibility with the built-in secondary drain pan, which allows the unit to be mounted vertically for either a floor- or ceiling-concealed installation depending on existing conditions.

Built-In Condensate Lift Pump

Supplied with a condensate lift pump that is capable of lifting the water a maximum of 29.5 in. (750 mm.) above the top of the unit.

CONTROLS

• Wireless Remote Controller included with indoor unit
• Optional Wired Remote Controller KSACN0101AAA (Timer Function)
• Wired Remote Controller KSACN0501AAA (7-Day Programmable) included with indoor unit

INDOOR FEATURES

• Available in 208/230V
• Up to 22.5 SEER and up to 12.0 HSPF when paired with DLCSRA outdoor unit
• Modes: Cool, Heat, Dry, Fan, Auto
• Vertical or horizontal installation
• Up to 0.64 in WG
• Rear or bottom return
• Variable CFM Operation
• Built-in condensate lift pump
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Quiet indoor operation, as low as 30 dB(A)
• Aluminum Golden Hydrophilic pre-coated fins

COMPATIBLE WITH:

• DLCSRA Outdoor Unit - Single Zone (p 21)
• DLCMRA Outdoor Unit - Multi-Zone (p 47)
• Wireless Wired Controller Remote Controller (Timer Function) KSACN0101AAA

ACCESSORIES

• Wi-Fi® Kit KSAIF0401AAA
• Wired Controller (7-Day Programmable) KSACN0501AAA
• 24V Interface for third-party thermostat compatibility KSAIC0401230

Discontinued. No returns.
